Flexible Connector
Copper Braided Flexible Connector
High-conductivity flexible copper connectors for power equipment assemblies.

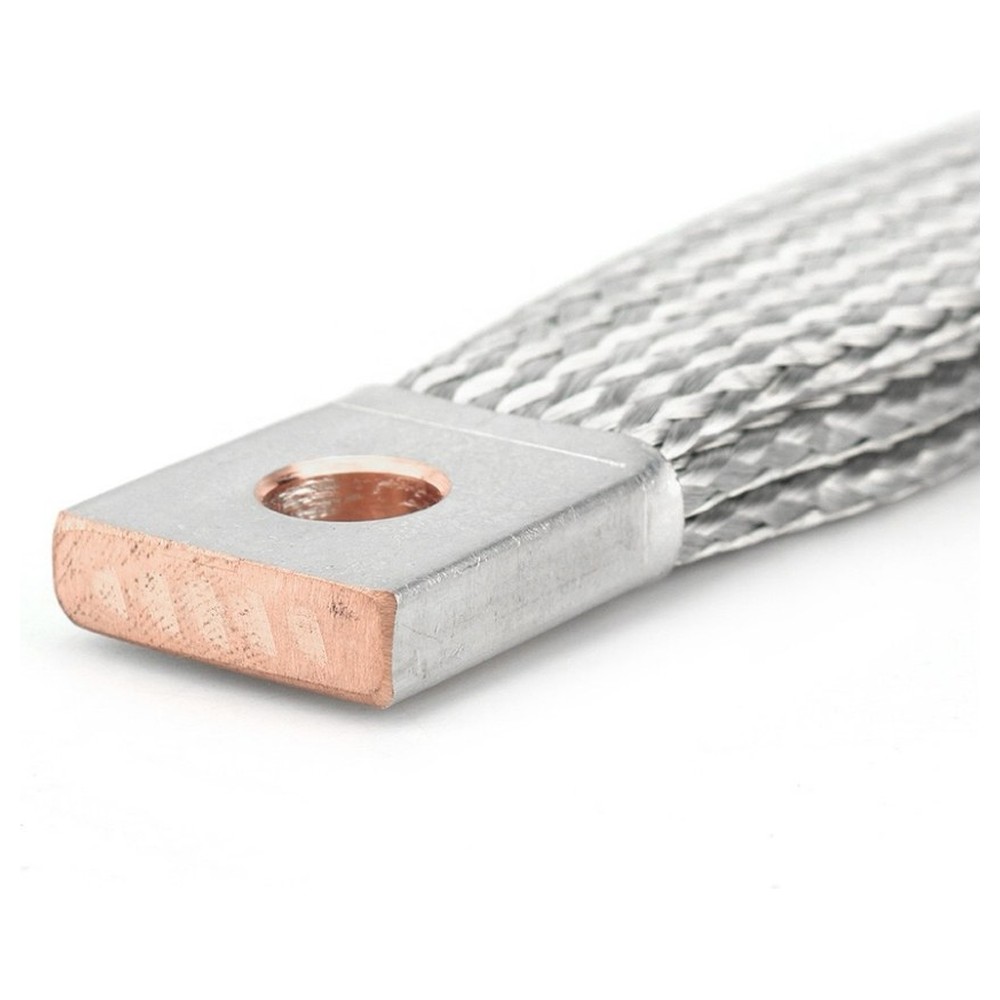

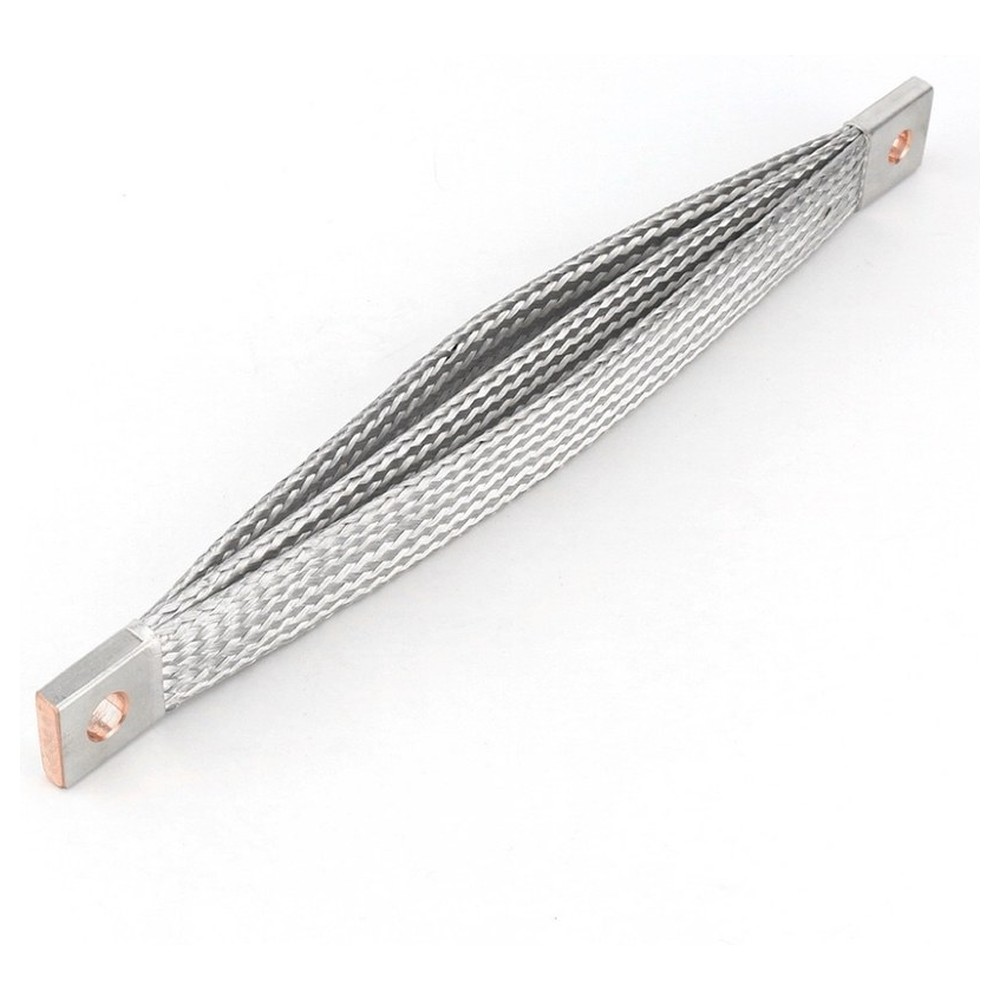

Available in bare copper and tin-plated copper, our flexible connectors are made with high-purity copper for stable conductivity, oxidation resistance, reliable heat dissipation, and long service life in demanding electrical applications.
The braided structure helps absorb vibration and installation tolerance while maintaining electrical continuity. Dimensions, terminal style, hole pattern, plating, and current rating can be customized from drawings, samples, or project requirements.
Request QuoteProduct Details

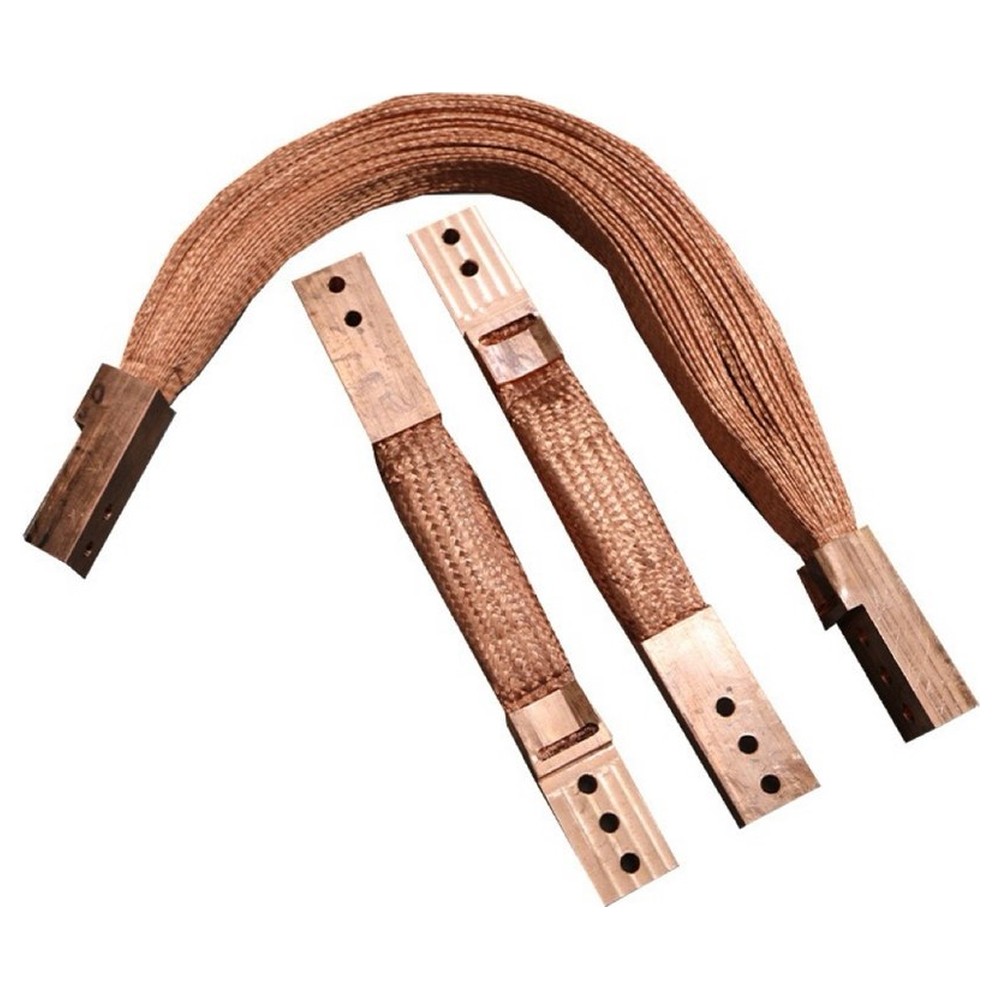

Connector styles and terminal details
Reference Table
Reference specifications
Current ratings are for reference only. A, B, and L dimensions can be customized according to customer requirements.
| Cross-Section Area (mm²) | Rated Current (Reference Only) | A (mm) | B (mm) | L |
|---|---|---|---|---|
| 10 | 75-105A | 20 | 1.5 | Customizable according to customer requirements |
| 16 | 100-150A | 25 | 2 | |
| 25 | 145-210A | 25 | 2.8 | |
| 25 | 145-210A | 30 | 2.8 | |
| 35 | 170-250A | 25 | 3.2 | |
| 35 | 170-250A | 40 | 3.6 | |
| 50 | 205-300A | 30 | 4.5 | |
| 50 | 215-310A | 50 | 3.5 | |
| 75 | 245-355A | 30 | 6 | |
| 75 | 245-355A | 80 | 5 | |
| 75 | 270-390A | 40 | 4.8 | |
| 100 | 325-470A | 35 | 6 | |
| 100 | 325-470A | 50 | 5.5 | |
| 125 | 375-540A | 40/50 | 6 | |
| 150 | 405-580A | 40 | 6.5 | |
| 200 | 505-630A | 50 | 8 | |
| 250 | 625-820A | 50 | 9 |
