Copper Busbar

High-purity copper busbars for panel and power equipment assemblies.

Our copper busbars are made from high-quality high-purity copper, with optional tin plating or nickel plating for different application environments.

They provide strong conductivity, stable current flow, corrosion resistance, and flexible customization for dimensions, thickness, hole patterns, surface finish, and project-specific specifications.

Request Quote

High-Purity CopperQuality copper material supports reliable conductivity and stable electrical performance.

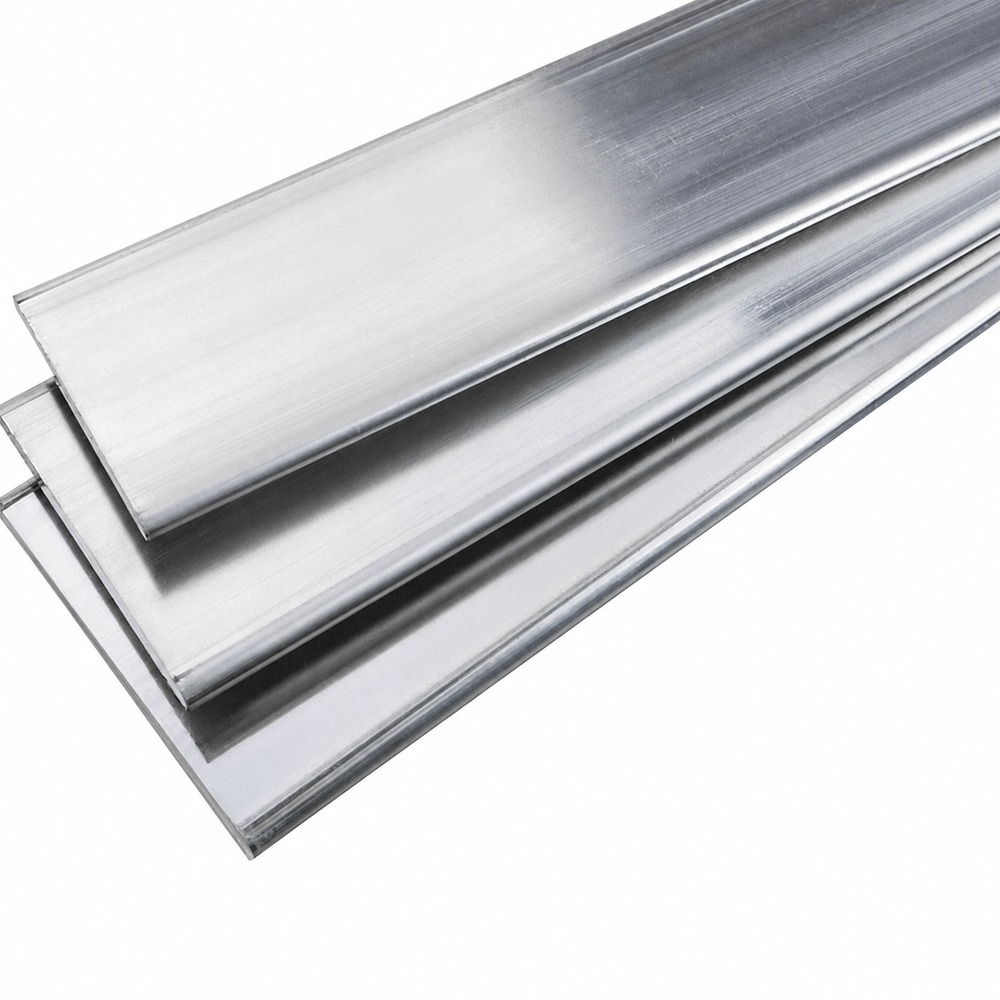

Plating OptionsTin-plated and nickel-plated finishes are available for corrosion-resistance needs.

Custom DimensionsThickness, width, length, hole pattern, bending, and finish can be customized from drawings.

OEM SupplySuitable for panel builders, electrical cabinets, busway systems, and power equipment assemblies.

Product Details

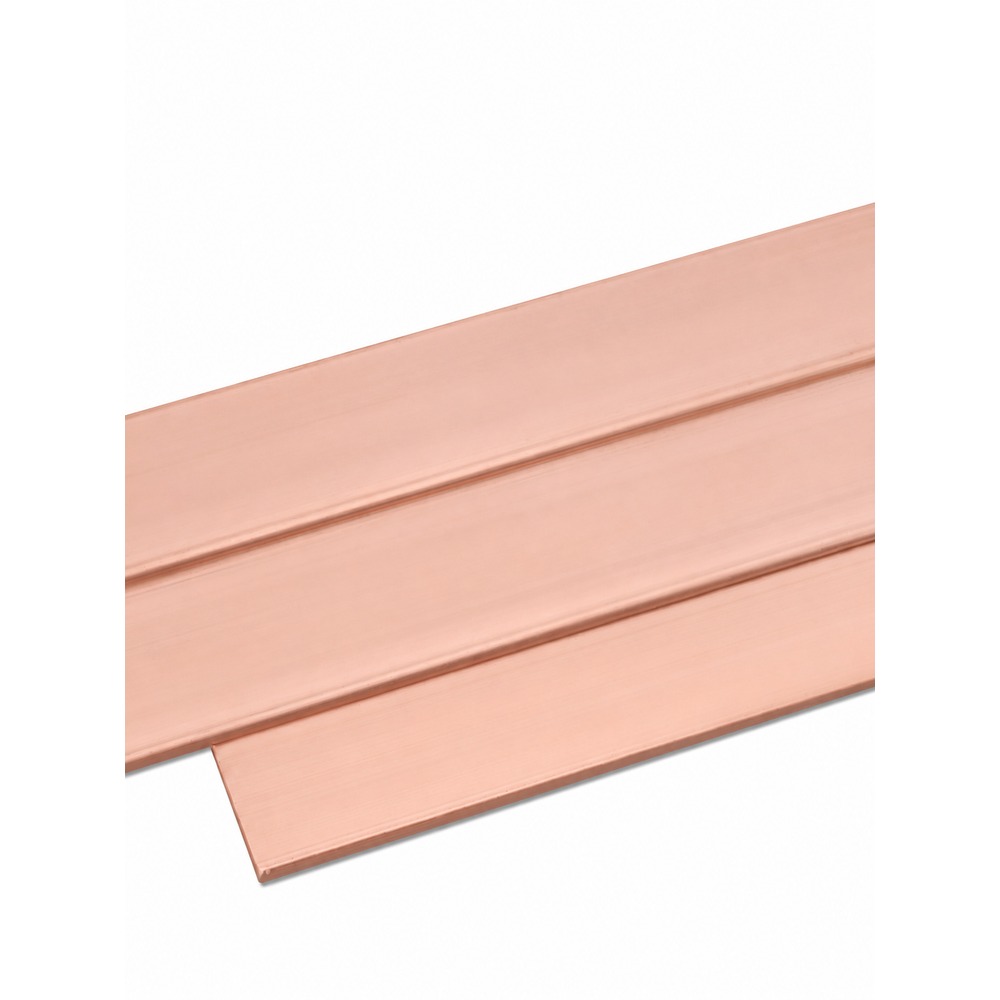

Copper busbar product details

Reference Sizes

Common copper busbar sizes

Standard sizes are shown for reference. Dimensions and specifications can be customized according to drawings or project requirements.

Thickness (mm)	Available Sizes (Thickness x Width, mm)
1.5	1.5 x 10, 1.5 x 15, 1.5 x 20
2	2 x 10, 2 x 12, 2 x 15, 2 x 20, 2 x 25, 2 x 30
3	3 x 10, 3 x 12, 3 x 15, 3 x 20, 3 x 25, 3 x 30, 3 x 40, 3 x 50
4	4 x 15, 4 x 20, 4 x 22, 4 x 25, 4 x 30, 4 x 40, 4 x 50, 4 x 60
5	5 x 10, 5 x 15, 5 x 20, 5 x 25, 5 x 30, 5 x 40, 5 x 50, 5 x 60, 5 x 80, 5 x 100
6	6 x 20, 6 x 25, 6 x 30, 6 x 40, 6 x 50, 6 x 80, 6 x 100, 6 x 120, 6 x 125
8	8 x 20, 8 x 30, 8 x 40, 8 x 50, 8 x 60, 8 x 80, 8 x 100, 8 x 120, 8 x 125
10	10 x 10, 10 x 20, 10 x 30, 10 x 40, 10 x 50, 10 x 60, 10 x 80, 10 x 100, 10 x 120, 10 x 125
12	12 x 20, 12 x 30, 12 x 40, 12 x 50, 12 x 60, 12 x 80, 12 x 100, 12 x 120, 12 x 125
15	15 x 20, 15 x 25, 15 x 30, 15 x 35, 15 x 40, 15 x 45, 15 x 50, 15 x 60, 15 x 70, 15 x 80, 15 x 100, 15 x 120, 15 x 150, 15 x 200
20	20 x 20, 20 x 25, 20 x 30, 20 x 35, 20 x 40, 20 x 45, 20 x 50, 20 x 55, 20 x 60, 20 x 70, 20 x 80, 20 x 90, 20 x 100, 20 x 120, 20 x 150, 20 x 200
25	25 x 25, 25 x 30, 25 x 35, 25 x 40, 25 x 45, 25 x 50, 25 x 55, 25 x 60, 25 x 70, 25 x 80, 25 x 90, 25 x 100, 25 x 120, 25 x 150, 25 x 200
30	30 x 30, 30 x 35, 30 x 40, 30 x 45, 30 x 50, 30 x 55, 30 x 60, 30 x 70, 30 x 80, 30 x 90, 30 x 100, 30 x 120, 30 x 150, 30 x 200
35	35 x 35, 35 x 40, 35 x 45, 35 x 50, 35 x 55, 35 x 60, 35 x 70, 35 x 80, 35 x 90, 35 x 100, 35 x 120, 35 x 150, 35 x 200
40	40 x 40, 40 x 45, 40 x 50, 40 x 55, 40 x 60, 40 x 70, 40 x 80, 40 x 100, 40 x 120, 40 x 150, 40 x 200
45	45 x 45, 45 x 50, 45 x 55, 45 x 60, 45 x 70, 45 x 80
50	50 x 50, 50 x 60, 50 x 70, 50 x 80, 50 x 100, 50 x 120, 50 x 150, 50 x 200
60	60 x 60, 60 x 80, 60 x 100, 60 x 120
