Wall-mounted Enclosure
Wall-mounted Electrical Enclosure
Compact wall-mounted cabinets for control and distribution applications.
Our wall-mounted enclosures can be customized by drawing, sample, or project requirement, including cabinet dimensions, cable entries, mounting holes, panel openings, and accessory layouts.

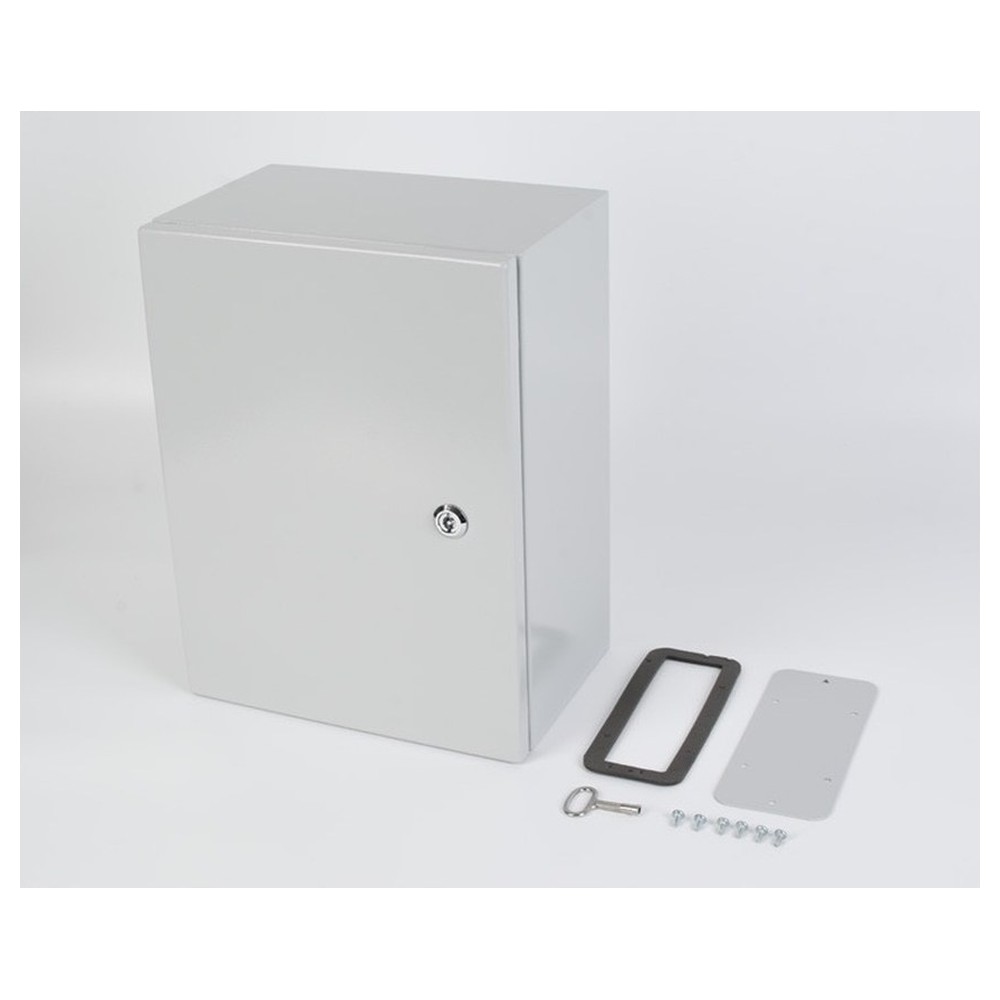

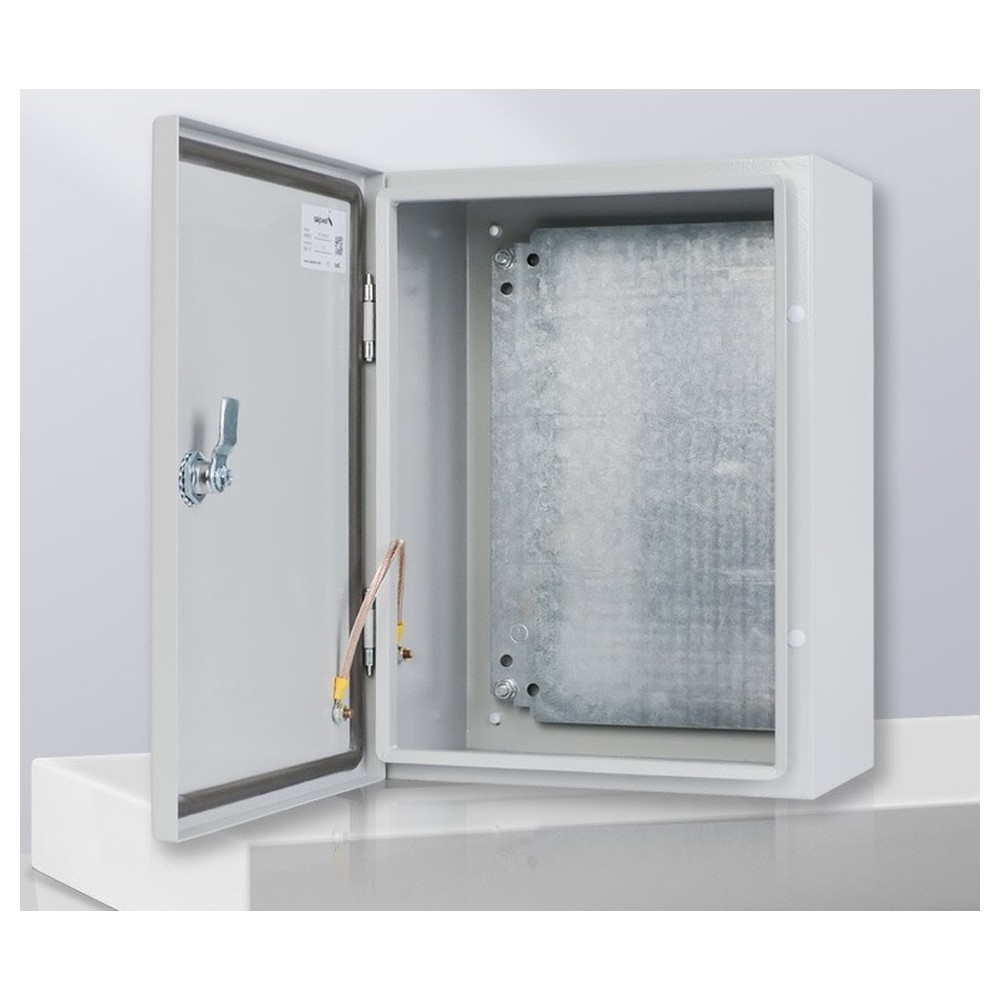

Material options include cold-rolled steel, stainless steel 304 or 316, plastic, and fiberglass reinforced plastic. Standard sheet thickness options include 0.8 mm, 1.0 mm, and 1.2 mm, with removable back plates and bottom plates available for easier installation and maintenance.
UL listed options are available, with TUV, SGS, and related certification documentation supported according to project requirements.
Request QuoteProduct Details

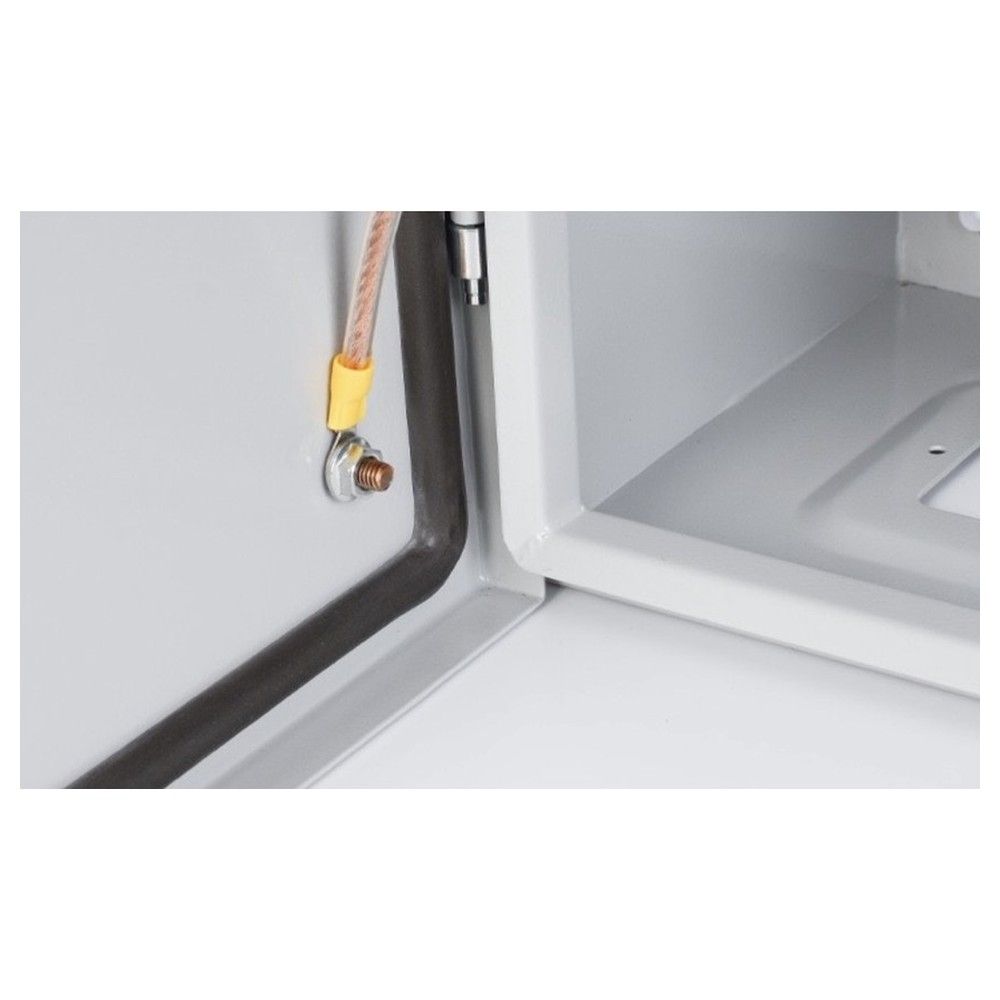

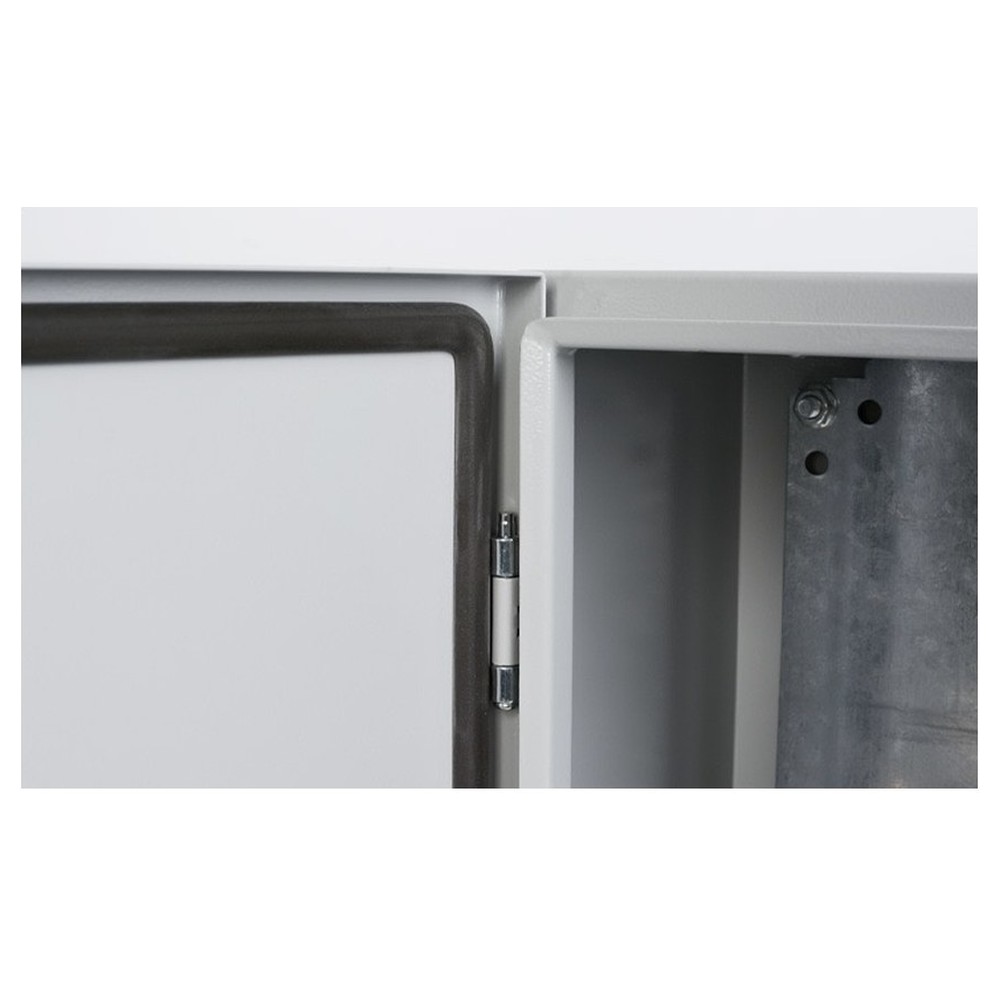

Sealing, grounding, mounting, and accessory details
Reference Sizes
Standard wall-mounted enclosure dimensions
SPT model numbers use six digits for width, height, and depth. Each two-digit group is converted to millimeters.
Reading example: SPT-202015 = 200 mm width, 200 mm height, 150 mm depth.
| Model | Width (mm) | Height (mm) | Depth (mm) |
|---|---|---|---|
| SPT-202015 | 200 | 200 | 150 |
| SPT-302015 | 300 | 200 | 150 |
| SPT-302520 | 300 | 250 | 200 |
| SPT-403015 | 400 | 300 | 150 |
| SPT-403020 | 400 | 300 | 200 |
| SPT-404020 | 400 | 400 | 200 |
| SPT-504020 | 500 | 400 | 200 |
| SPT-504025 | 500 | 400 | 250 |
| SPT-604020 | 600 | 400 | 200 |
| SPT-605025 | 600 | 500 | 250 |
| SPT-705025 | 700 | 500 | 250 |
| SPT-806030 | 800 | 600 | 300 |
| SPT-1008030 | 100 | 80 | 300 |
