Freestanding Enclosure

Freestanding Electrical Enclosure

Modular enclosure cabinets for power equipment assemblies.

Our freestanding enclosures are available in 5-fold, 9-fold, and 16-fold Rittal-style cabinet structures for electrical distribution, control panels, and data center power equipment projects.

Each cabinet supports modular assembly, complete specification ranges, and customization from drawings, samples, photos, or project requirements. Thickened sheet metal, fine workmanship, smooth burr-free edges, and clean surface finishing help support safe installation and long-term operation.

UL listed options are available, with TUV, SGS, and related certification documentation supported according to project requirements.

Request Quote

5 / 9 / 16-Fold CabinetsRittal-style cabinet structures for different rigidity, layout, and project specification requirements.

Modular AssemblyFlexible frame, door, rail, panel, gasket, and accessory combinations for faster configuration.

Custom by DrawingDimensions, cutouts, mounting layouts, finish, and accessories can be customized from drawings or samples.

Certified SupplyUL listed configurations available, with TUV, SGS, and related documentation supported by project needs.

Product Details

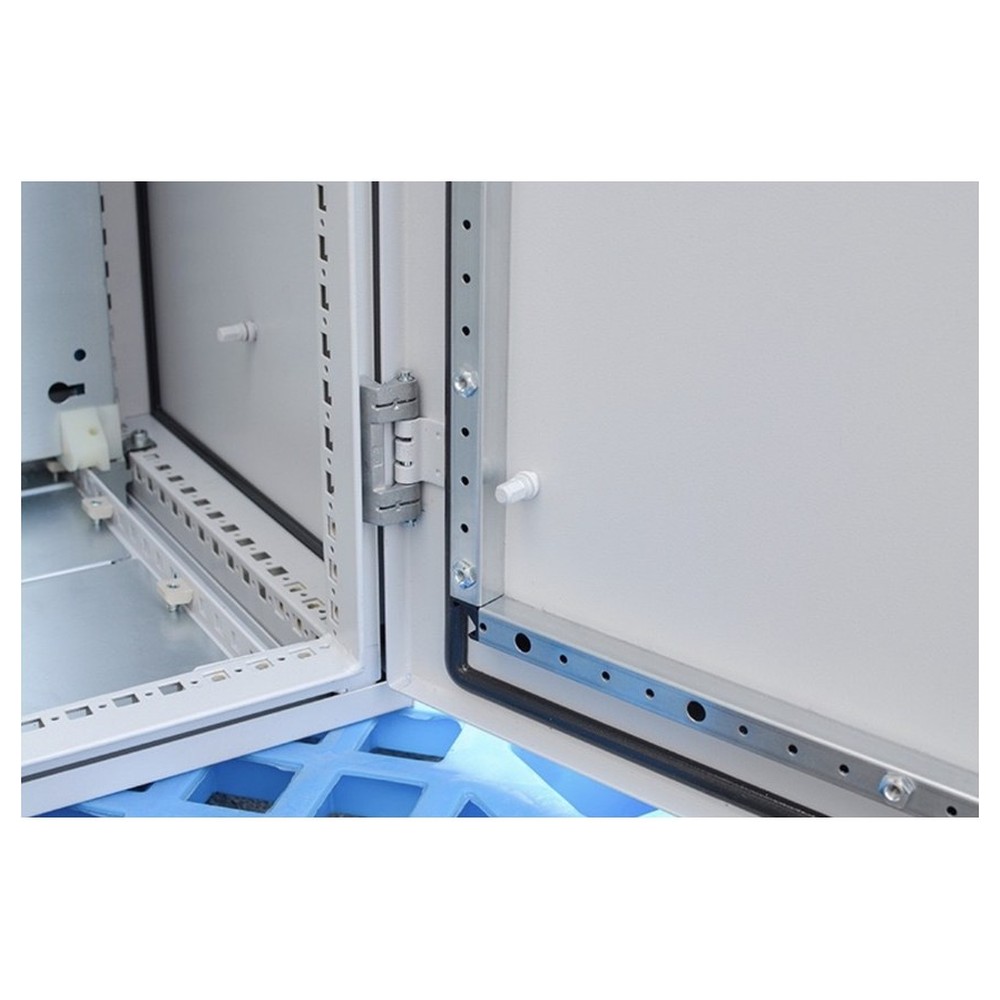

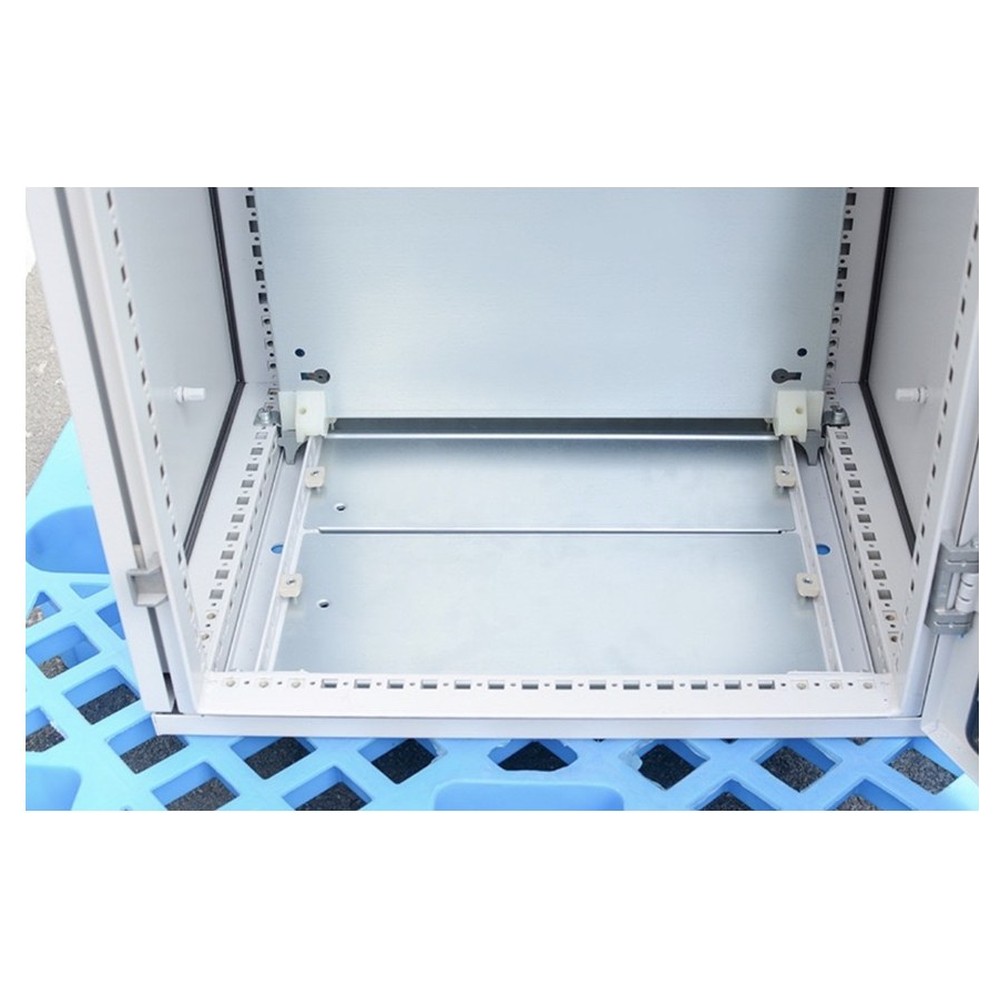

Cabinet structure and assembly details

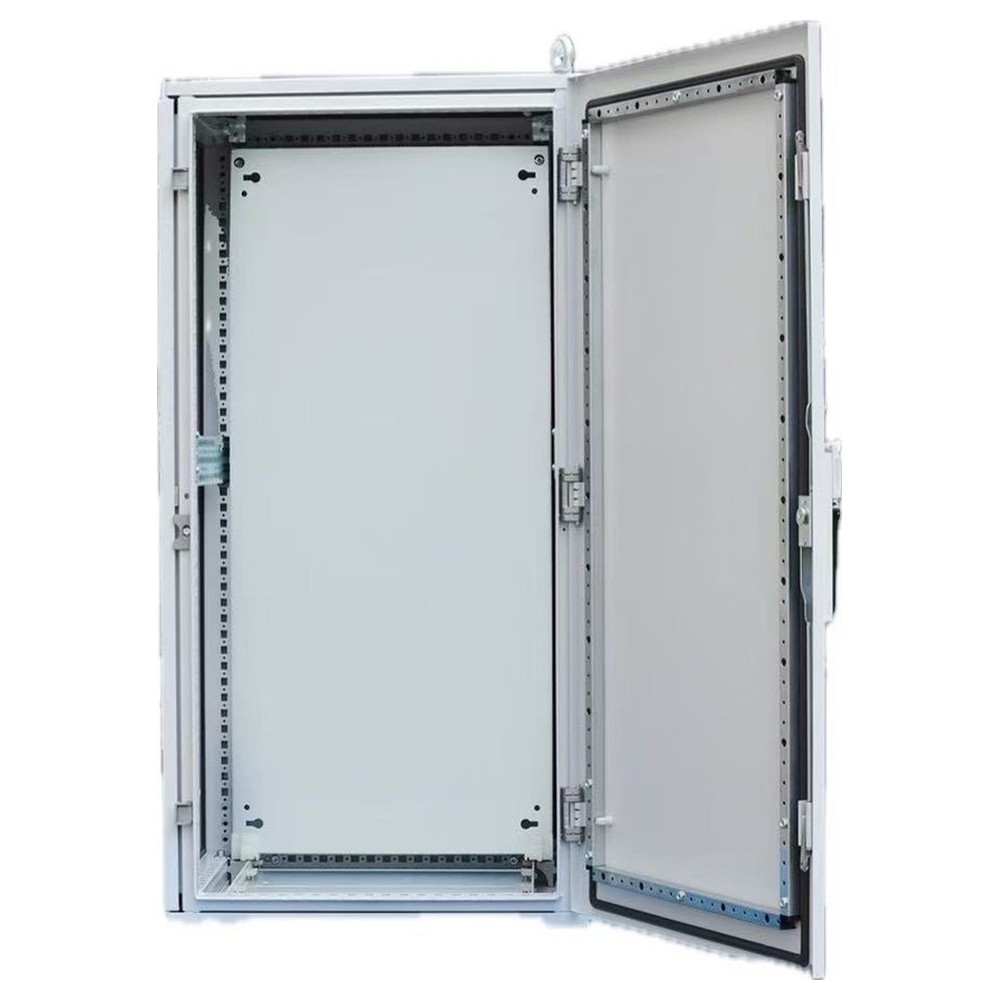

Open freestanding electrical enclosure interior

Reference Sizes

Standard freestanding enclosure dimensions

Model numbers use six digits for width, height, and depth. Each two-digit group is converted to millimeters.

Reading example: KT601650 = 600 mm width, 1600 mm height, 500 mm depth.

Model	Width (mm)	Height (mm)	Depth (mm)
KT601650	600	1600	500
KT602060	600	2000	600
KT801450	800	1400	500
KT801650	800	1600	500
KT801850	800	1800	500
KT802050	800	2000	500
KT802060	800	2000	600
KT802260	800	2200	600
KT801880	800	1800	800
KT802080	800	2000	800
KT121450	1200	1400	500
KT121850	1200	1800	500
KT122050	1200	2000	500
KT122060	1200	2000	600
KT122260	1200	2200	600
