End Feed/Tap-off Box

End feed and tap-off box main product image

Busway System

End feed and tap-off boxes for busway power distribution.

We provide end feed boxes and tap-off boxes for busway systems, supporting incoming power connection, branch circuit distribution, and project-specific equipment integration.

The structure is stable and easy to install, with strong conductivity that helps reduce power loss and improve energy efficiency in distribution systems.

The magnesium-aluminum alloy housing offers high strength, light weight, and reliable heat dissipation for demanding power equipment applications.

Box configurations, enclosure dimensions, internal conductor layout, protection devices, terminals, and installation interfaces can be customized from drawings or project requirements.

Request Quote

Stable StructureRigid box construction supports secure installation and dependable busway integration.

Energy EfficiencyStrong conductivity supports reliable current flow and helps reduce distribution loss.

Alloy HousingMagnesium-aluminum alloy housing combines high strength, light weight, and heat dissipation.

Project CustomizationDimensions, terminals, conductor arrangement, and interfaces can be customized from drawings.

Product Details

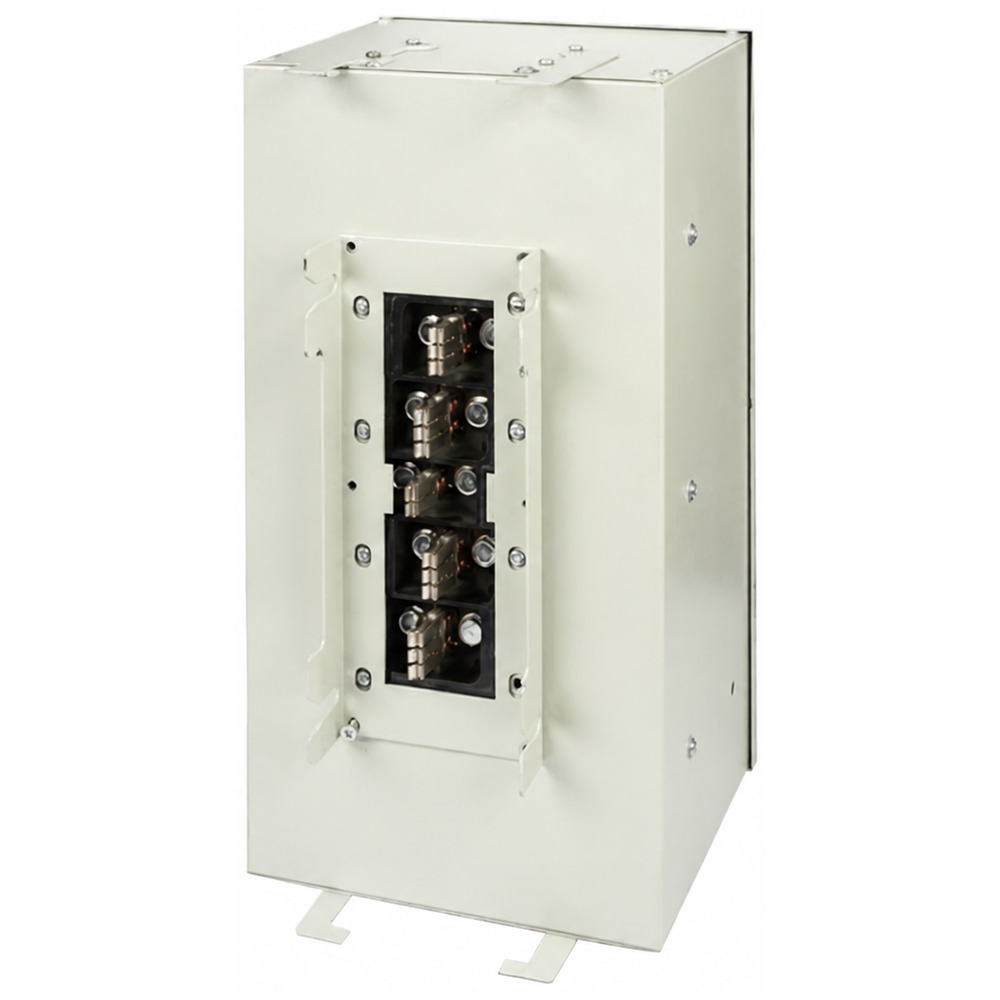

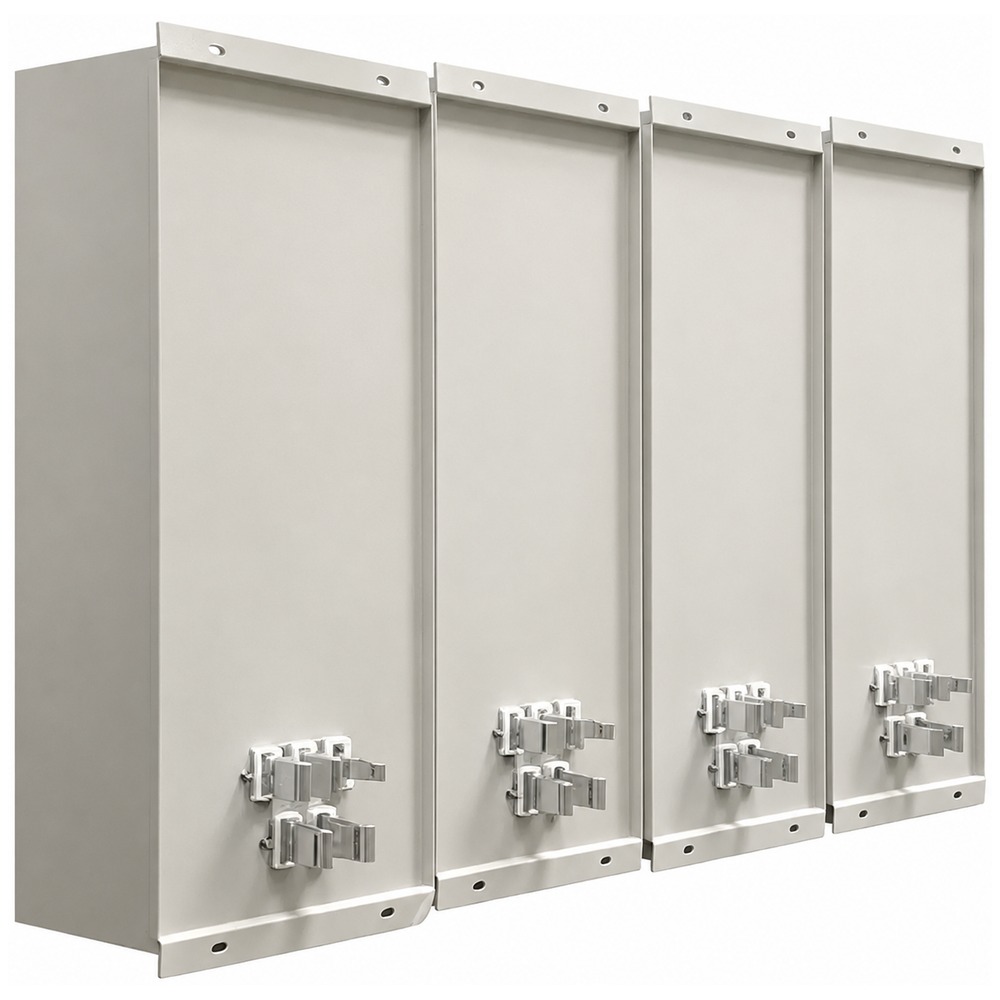

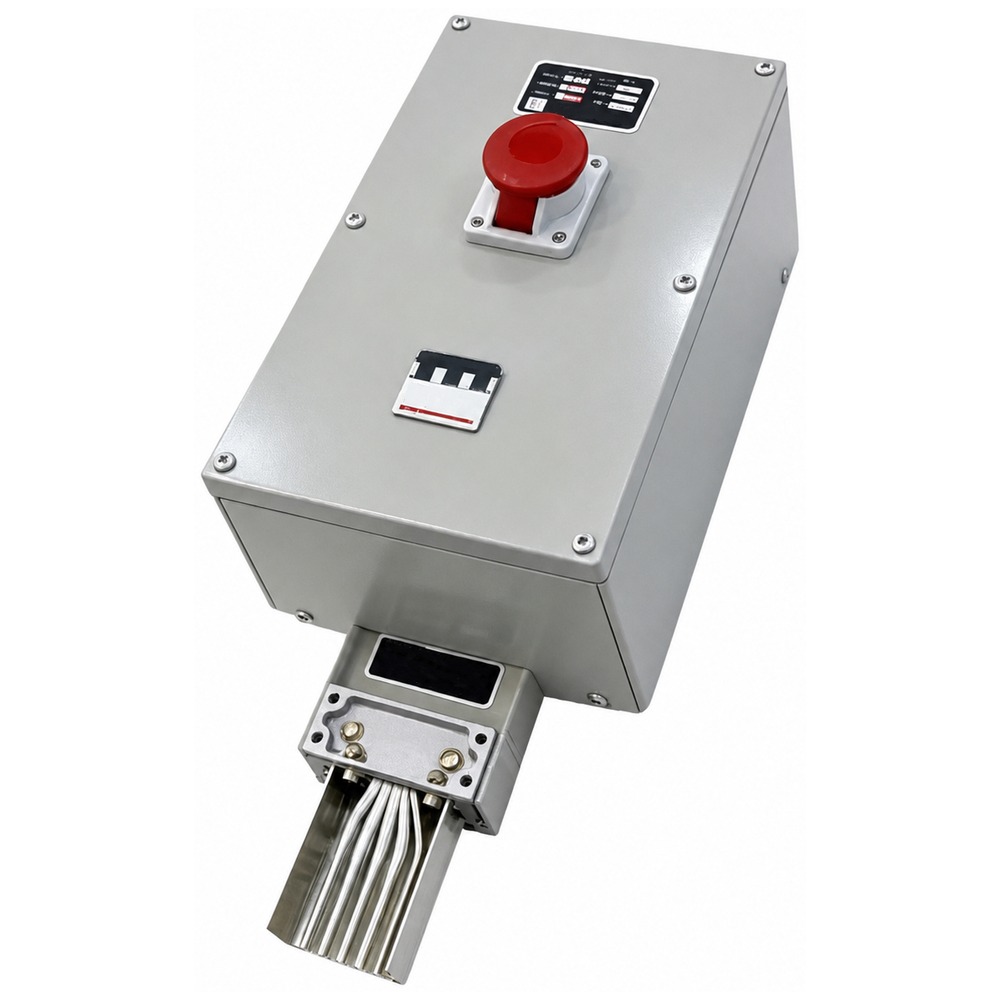

End feed and tap-off box details

Reference Parameters

Busway system parameter table

Reference values are shown for model selection. Final dimensions and ratings can be customized according to drawings or project requirements.

Current Rating (A)	Short-Time Withstand Current 1CW (kA)	Peak Withstand Current 1PK (kA)	Resistance / m (mΩ)	Reactance / m (mΩ)	Impedance / m (mΩ)	Voltage Drop / m (V)	Width W (mm)	Height H (mm)	Weight 4-Wire (kg/m)	Weight 5-Wire (kg/m)
400	30	63	0.110	0.039	0.116	0.08	128	105	11.8	12.6
630	30	63	0.094	0.035	0.101	0.11	128	120	12.9	13.8
800	50	105	0.073	0.031	0.079	0.11	128	135	15.0	16.2
1000	50	105	0.060	0.028	0.066	0.11	128	155	17.2	18.7
1250	65	143	0.047	0.024	0.053	0.11	128	185	20.7	22.5
1600	65	143	0.033	0.020	0.039	0.11	128	225	27.6	30.2
2000	65	143	0.024	0.017	0.030	0.10	128	265	35.6	39.2
2500	100	220	0.018	0.014	0.023	0.10	128	335	45.9	50.7
3150	100	220	0.015	0.012	0.019	0.10	128	415	60.2	66.1
4000	100	220	0.011	0.009	0.014	0.10	128	525	76.3	84.0
5000	100	220	0.009	0.006	0.011	0.09	128	795	97.0	107.1
6300	120	264	0.007	0.004	0.008	0.08	128	655	124.5	127.6
